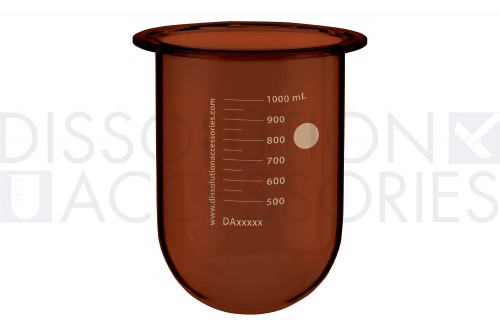

1000ml High precision amber glass vessel for Electrolab

PSHPGLA900-AEL
1000ml High precision amber glass vessel for Electrolab


Product number     PSHPGLA900-AEL
OEM reference     Dissolution Accessories innovated product
OEM     Electrolab
Material     3.3 Borosilicate glass
Volume     1000ml
Color     Amber
Vessel style     Round bottom

Key features:
  • Amberized for protection against UV
  • Fits directly into the dissolution bath without the use of adapter rings.
  • Comes standard with individual certificate of compliance stating:
      - Vessel serial number
      - Vessel height
      - Vessel inside diameter at 45mm, 70mm and 95mm
      - Vessel radius
  • ASTM, USP, JP, EP, BP compliant.
  • Will reduce the variation of dissolution data.


High Precision Dissolution Vessels

Dissolution Accessories has developed instrument made vessels for a wide variety of brands, in Standard and High Precision.
These vessels are available in most common dimensions in Clear Glass, Amber, Peak or Teflon coated.
The vessels are adapted to every brand and work without the need of any separate adapter bracket, they fit directly in your Dissolution instrument regardless the manufacturer! No AccuCenter Vessel Centering is needed!
The pharmaceutical analysts worldwide may benefit from the Dissolution Accessories Vessels performance, regardless of their vendor of choice.

Precision on physical dimension.
Precision on physical dimension Specifications
Dimension Actual Data (min.-max.) (mm)
Sphericity Less 0.10
Radius* 50.03 ±0.08
Circularity Less 0.06
Cylindricity Less 0.17
Concentricity Less 0.08
Angle** 89.70-90.00
* Each value was measured by a three-dimensional coordinate measuring machine from Brown & Sharpe (PMM-C700P)
** The unit is in degree. Eight standard type vessels were subjected to this measurement
