O-ring style sinker

PSCAPWHT-S99

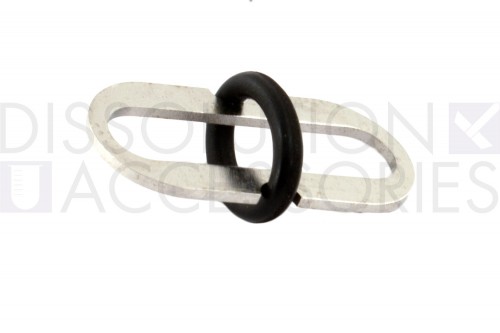

O-ring style sinker


Product number     PSCAPWHT-S99
OEM number     8399
Compatible with     Sotax
Material     316 Stainless Steel
Max capsule size     3

  • Inside diameter: 0.230 inches / 5.8mm
  • Inside lenght: 0.900 inches/ 22.9mm
O-ring sinkers feature an expandable rubber ring. This lets the capsule swell whilst still maintaining adequate sinking.

Capsule size Length Diameter
(inches) (mm) (inches) (mm)
000 1.029 26.1 0.390 9.91
00E 1.012 25.7 0.336 8.53
00 0.917 23.3 0.336 8.53
0E 0.909 23.1 0.301 7.65
0 0.854 21.7 0.301 7.65
1 0.765 19.4 0.272 6.91
2 0.709 18.0 0.250 6.35
3 0.626 15.9 0.229 5.83
4 0.563 14.3 0.209 5.32
5 0.437 11.1 0.193 4.91
