150 mesh sinker basket with lid

PSSNK150-VK

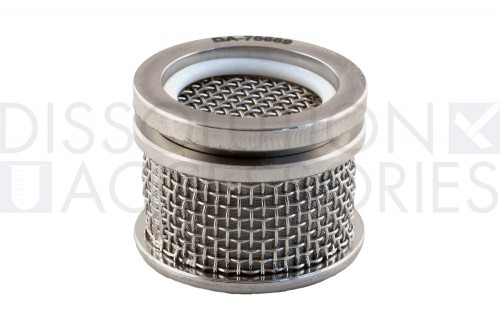

150 mesh sinker basket with lid


Product number     PSSNK150-VK
OEM number     12-3067
Compatible with     Agilent
Mesh     150
Material     316 Stainless Steel
Max capsule size     1

  • Inside diameter: 0.795 inches / 20.2mm
  • Inside length: 0.500 inches / 12.7mm
  • Serialized both basket and lid
  • 150 mesh on the inside supported by 20 mesh outside to prevent damage
The sinker baskets are designed to keep the dosage form at the bottom of the vessel. They are made of type 316 stainless steel and use press-on caps (with O-rings). They can be manufactures in different diameters and mesh sizes.

Capsule size Length Diameter
(inches) (mm) (inches) (mm)
000 1.029 26.1 0.390 9.91
00E 1.012 25.7 0.336 8.53
00 0.917 23.3 0.336 8.53
0E 0.909 23.1 0.301 7.65
0 0.854 21.7 0.301 7.65
1 0.765 19.4 0.272 6.91
2 0.709 18.0 0.250 6.35
3 0.626 15.9 0.229 5.83
4 0.563 14.3 0.209 5.32
5 0.437 11.1 0.193 4.91
