Manual Hardness Tester 1000N, 1-28mm

PSDM500-Final
durometro_manuale_elab_pastiglia-bfe826d9
stampante_durometro_manuale-c86f1388
PSDM1000
Manual Hardness Tester 1000N, 1-28mm


Product number     PSDM1000

  • EP 2.9.8 c& USP1217 compliant
  • Tablet size 1-28mm
  • 1-1000N
  • Optional mini printer

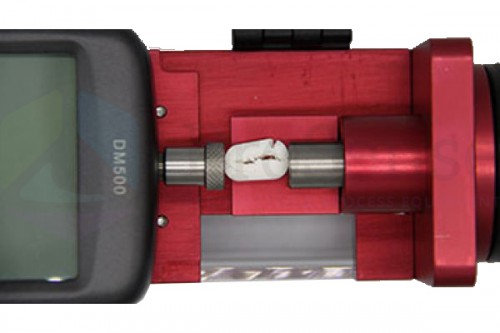

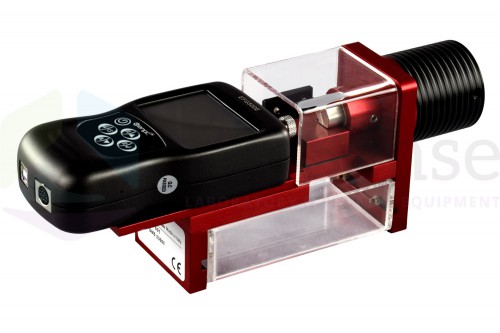

The ProSense Tablet Hardness Tester is a compact instrument for the manual measurement of hardness of tablets, sugar coating, oblong and similar dosage forms.
A load cell with transducer measures the hardness. The standard measuring range is from 1 to 500N or 1 to 1000N with a special transducer

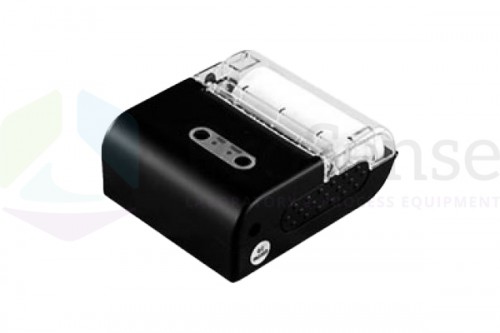

The results could be stored in a memory and printed with a mini-printer (optional) or send to PC via RS232.
  • Tablet Size 1 - 28mm
  • Range 1 - 1000 Newton
  • Accuracy +/- 0.3% F.S.
  • Measurement units N, Kgf, Ozf or lbf
  • Display 160 x 128 matrix LCD with Backlight
  • Memory 500 data points
  • Power 3.6 VDC 450mAH Ni-Mh rechargeable batteries
  • Charger USB / BM Charger, input 110-240 VAC
  • Height 90mm
  • Width 75mm
  • Length 260mm
  • Weight 1.25 kg
